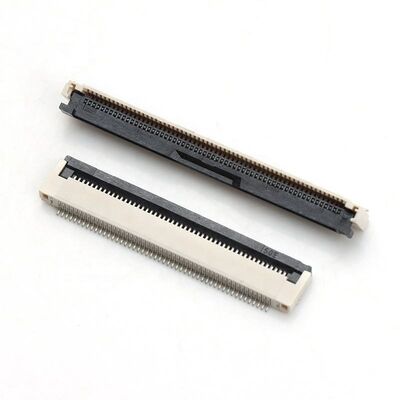

FPC Connector Horizontal Flip-lock ZIF Type H2.0mm 4-60pin 0.5mm Pitch FPC/ FFC Connectors

FPC Connector Horizontal Flip-lock ZIF Type H2.0mm 4-60pin 0.5mm Pitch FPC/ FFC Connectors
FPC Connector Horizontal Flip-lock ZIF Type H2.0mm 4-60pin 0.5mm Pitch FPC/ FFC Connectors FPC Connector Horizontal Flip-lock ZIF Type H2.0mm 4-60pin 0.5mm Pitch FPC/ FFC Connectors FPC Connector Horizontal Flip-lock ZIF Type H2.0mm 4-60pin 0.5mm Pitch FPC/ FFC Connectors FPC Connector Horizontal Flip-lock ZIF Type H2.0mm 4-60pin 0.5mm Pitch FPC/ FFC Connectors

تصویر بزرگ :  FPC Connector Horizontal Flip-lock ZIF Type H2.0mm 4-60pin 0.5mm Pitch FPC/ FFC Connectors

جزئیات محصول:
محل منبع: گوانگدونگ، چین
نام تجاری: XTKCONN
گواهی: CE,SGS,ROHS,ISO9001
شماره مدل: اتصال دهنده
پرداخت:
مقدار حداقل تعداد سفارش: 500 عدد
قیمت: Negotiable price
جزئیات بسته بندی: بسته داخلی: در سینی ؛ بسته بیرونی: حلقه در کارتن
زمان تحویل: 5-7 روز
شرایط پرداخت: L/C، T/T، Payal
قابلیت ارائه: 1KK عدد
مخاطب

FPC Connector Horizontal Flip-lock ZIF Type H2.0mm 4-60pin 0.5mm Pitch FPC/ FFC Connectors

شرح
رنگ: سیاه سفید جنسیت: مونث
نام محصول: اتصال FPC مواد: پلاستیک ، مس
زمین: 0.5 میلی متر ویژگی: مقاومت در برابر درجه حرارت بالا
برجسته کردن:

2.0mm Horizontal FPC Connector,Horizontal Flip-lock FPC Connector,ZIF type FPC Connector

,

Horizontal Flip-lock FPC Connector

,

ZIF type FPC Connector

FPC Connector Horizontal Flip-lock ZIF Type H2.0mm 4-60pin 0.5mm Pitch FPC/ FFC Connectors





Description
Product Name
FPC connector
Item Number
0.5 FPC connector
Applicable FPC/FFC
0.3±0.03mm
Electronic Life
>10000CYCLES
Mechanical Life
>10000CYCLES
Contact Resistance
<60MΩ Max
Insulation Resistance
>500MΩ
Withstand Voltage
250V/MINUTE
Storage Temperature
-30°C~+70°C
FPC Connector Horizontal Flip-lock ZIF Type H2.0mm 4-60pin 0.5mm Pitch FPC/ FFC Connectors 0

1. FFC connector is flexible flat cable connector.
2. It is a new type of data cable made of pet insulating material and very thin tinned flat copper wire, which is pressed by high-tech automation equipment production line.
3. It has the advantages of softness, arbitrary bending and folding, thin thickness, small volume, simple connection, convenient disassembly, easy to solve electromagnetic shielding (EMI).
4. FPC connector is a flexible printed circuit board. Generally speaking, it is a PCB connector made of flexible materials (folding and bending materials) for the connection between LCD display and drive circuit (PCB).
FPC Connector Horizontal Flip-lock ZIF Type H2.0mm 4-60pin 0.5mm Pitch FPC/ FFC Connectors 1FPC Connector Horizontal Flip-lock ZIF Type H2.0mm 4-60pin 0.5mm Pitch FPC/ FFC Connectors 2FPC Connector Horizontal Flip-lock ZIF Type H2.0mm 4-60pin 0.5mm Pitch FPC/ FFC Connectors 3
Scope of application: mainly applicable to communications and electronic equipment, and the use of data is welded on the PCB plate, connecting the corresponding specifications of IDC cable and other circuit designers' requirements, reaching the circuit. Usually, the transmission control signal and if the current.
FPC Connector Horizontal Flip-lock ZIF Type H2.0mm 4-60pin 0.5mm Pitch FPC/ FFC Connectors 4
FPC Connector Horizontal Flip-lock ZIF Type H2.0mm 4-60pin 0.5mm Pitch FPC/ FFC Connectors 5
Main differences between FFC connector and FPC
In terms of their manufacturing, the way their circuits are formed is different:
1. FPC is a kind of flexible circuit board with different single side, double side and multilayer structure, which is processed by FCCL (flexible copper-clad foil) by chemical etching.
2. FFC is to use two layers of insulating foil film sandwiched with flat copper foil. The finished product is simple and thick.



Quality
Except the plating , from Design tooling , stamping , Injection molding , assembly, Testing , pand acking .All the steps are done by ourselves. So we can control the quality.



Packaging Details
Most product not have MOQ,the common connectors are in stock.Small order can be accepted.
Box/Tape & Reel/ Tray/ Tube/ PE Bag
special Packing depend on customer

Shipping
If goods is not large: Fedex, DHL, EMS, UPS, TNT, ect express shipping method;
If goods is large: Sea or Air shipping method.
Please nitfy me you have any special needs.



Our Advantage





1. We have been specializing in the production of auto connectors for 10 years.
2. In the production process, we strictly control the quality of raw materials and products.
3. Created a mold design team with more than 10 years of experience. Advanced mold processing equipment can develop design molds according to customer requirements.
4. Advanced laboratory equipment for many kinds of experimental tests
5. We supply products to dozens of domestic large wiring harness manufacturers, for Peugeot, Geely, BYD, VW, Toyota, Honda, Dongfeng, Wuling,and  Great Wall Automobile.
6. The products are mainly exported to Southeast Asia, Europe, the South, and North America.











How to Order

  • Send us a inquiry online, tell me what's the original part(Samtec.Harwin and so on) you used before. We will advise you our equivalent part.
  • Drop us a call, you can find more detailsand  and contact information on our website
  • Contact us via WhatsApp and Skype, We are a 24-hour online service. (86-13711847246​)
  • Email us, We will reply to your inquiry within 12 hours.
